DC12-24V

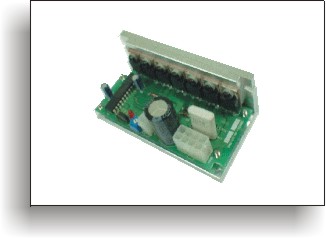

SBDF
|
|

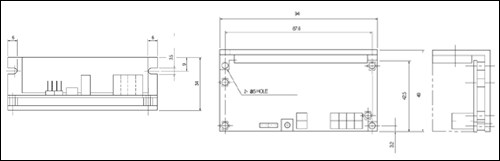

MOTOR DEMENSION
|
|
|
|
SPECIFICATION
| MODEL |
SBDF-04 |
SBDF-07 |
SBDF-10 |
| Output
Current |
4.2A |
7A |
10A |
| Input
Voltage |
DC12~24V |
| User
Interface |
Speed
Direction
Brake*
Hall
Signal*
Speed Control* |
| Control
Method |
3 Phase
PWM |
| Led
Display |
Power
(green)
Fault (red) |
| Operating
temperature |
-20oC~80oC | |
|
|
|
|
