GEAR
BOX
D
Series
|
MOTOR
ISG-3
Series
|
|
|
 |
|
|
|
|
|
|
· 최대 사용 TORQUE : 20
Kg-cm
· 출력축 회전수 : 4 ~ 600 RPM
· 출력축 사양은 Ø8까지 고객의
요구에 따라서 변경될 수 있음.

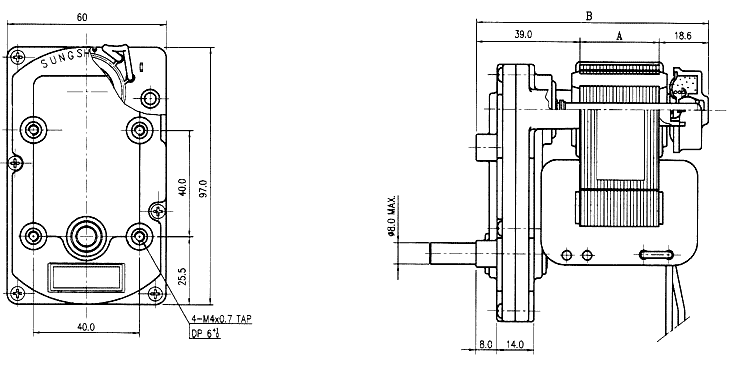

| MODEL |
치수
A |
치수
B |
| ISG-3215TYPE |
15 |
72.6 |
| ISG-3220TYPE |
20 |
77.6 |
| ISG-3225TYPE |
25 |
82.6 |
| ISG-3230TYPE |
30 |
87.6 |
| ISG-3240TYPE |
40 |
97.6 |
| ISG-3250TYPE |
50 |
107.6 |
| MODEL |
Poles |
Voltage |
Frequency |
No
Load |
Torque |
Duty |
| Speed |
Current |
Stall |
Starting |
| P |
V |
Hz |
rpm |
A |
Kg-cm |
Kg-cm |
| ISG-3215A |
2 |
220 |
60 |
35 |
0.14 |
9.1 |
7.0 |
CONTINUOUS |
| ISG-3220A |
2 |
115 |
60 |
80 |
1.35 |
9.8 |
8.5 |
INTERMITTENT |
| ISG-3225A |
2 |
115 |
60 |
9.6 |
0.40 |
63.3 |
41.4 |
CONTINUOUS |
| ISG-3230A |
2 |
220 |
60 |
97 |
0.38 |
9.3 |
5.7 |
INTERMITTENT |
| ISG-3230B |
2 |
100 |
50/60 |
52/63 |
1.07/0.78 |
23.1/17.3 |
13.9/9.5 |
INTERMITTENT |
| ISG-3230C |
2 |
220 |
60 |
63 |
0.40 |
16.5 |
9.5 |
INTERMITTENT |
| ISG-3230D |
2 |
115 |
60 |
47 |
0.75 |
27.9 |
16.0 |
INTERMITTENT |
| ISG-3230E |
2 |
100 |
50/60 |
23/28 |
1.07/0.78 |
52.5/39.3 |
32.5/21.7 |
INTERMITTENT |
| ISG-3230F |
2 |
220 |
60 |
28 |
0.40 |
37.4 |
21.6 |
INTERMITTENT |
| ISG-3230G |
2 |
220 |
60 |
20 |
0.36 |
45.9 |
25.0 |
INTERMITTENT |
| ISG-3230H |
2 |
115 |
60 |
17.5 |
0.76 |
74.4 |
42.6 |
INTERMITTENT |
| ISG-3230I |
2 |
220 |
60 |
9.6 |
0.12 |
34.9 |
24.9 |
CONTINUOUS |
| ISG-3230J |
2 |
220 |
60 |
8.0 |
0.15 |
42.0 |
27.0 |
CONTINUOUS |
| ISG-3230K |
2 |
220 |
60 |
4.4 |
0.13 |
70.4 |
48.4 |
CONTINUOUS |
| ISG-3240A |
2 |
220 |
60 |
230 |
0.43 |
7.3 |
3.7 |
INTERMITTENT |
| ISG-3240B |
2 |
220 |
60 |
82 |
0.43 |
20.9 |
10.6 |
CONTINUOUS |
| ISG-3240C |
2 |
220 |
60 |
41 |
0.43 |
41.4 |
20.9 |
CONTINUOUS |
| ISG-3240D |
2 |
220 |
60 |
8.0 |
0.33 |
127.9 |
91.4 |
CONTINUOUS |
| ISG-3250A |
2 |
220 |
60 |
600 |
1.70 |
7.5 |
3.8 |
INTERMITTENT |
|
|
|
|
|
|
| | |
|
