M4H-H-GEARED
MOTOR
|
|
|
▶
Possible to product for needs of ratio beside
bellow chart
아래 표 이외에 감속비 요구 사항
제작 가능
|
|
|
|
MOTOR
SPECIFICATION
|
| DESCRIPTION |
CURRENT |
SPEED |
TORQUE |
OUTPUT |
EFF |
| A |
RPM |
g-cm |
W |
% |
| NO
LOAD |
12V |
0.28 |
4800 |
|
|
|
|
24V
|
0.14
|
5200
|
|
|
|
| AT
MAX.EFF |
12V |
1.19 |
3880 |
140 |
5.58 |
39.07 |
|
24V
|
0.41
|
4260
|
145
|
6.34
|
64.72
|
| AT
STALL |
12V |
5.07 |
|
735 |
|
|
|
24V
|
1.90
|
|
800
|
|
|
|
|
|
|
|
|

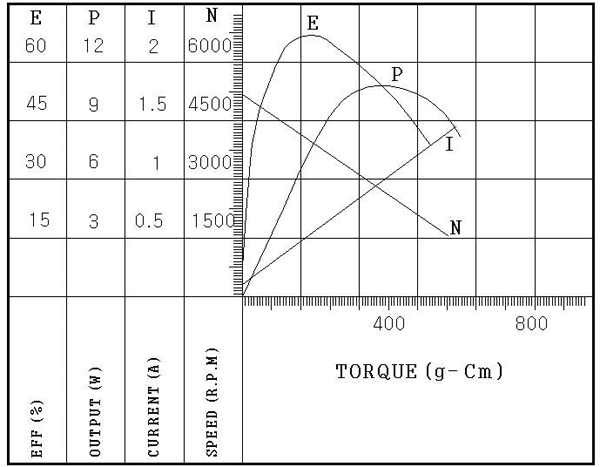

D.C
12V
|
|
|
|

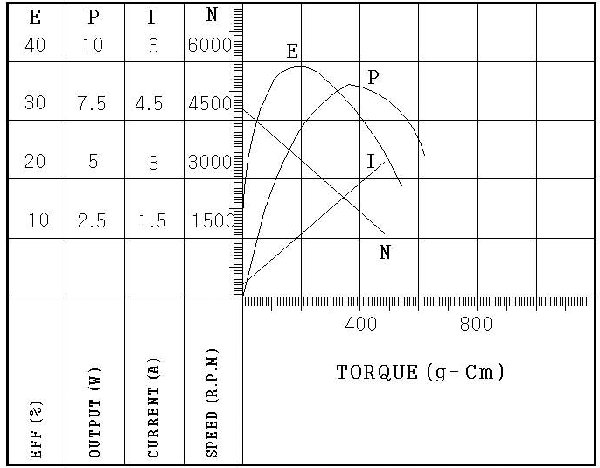

D.C
24V
|
|
GEARED
MOTOR SPECIFICATION
|
| RATIO |
V |
1/37 |
1/50 |
1/62 |
1/73 |
1/86 |
1/100 |
1/125 |
1/150 |
1/180 |
1/200 |
1/255 |
1/250 |
1/280 |
1/315 |
| NO
LOAD |
12V |
129 |
96 |
77 |
65 |
55 |
48 |
38 |
32 |
26 |
24 |
21 |
19 |
17 |
15 |
|
24V
|
140
|
104
|
83
|
71
|
60
|
52
|
41
|
34
|
28
|
26
|
23
|
20
|
18
|
16
|
|
AT MAXEFF
|
12V
|
104
|
77
|
62
|
53
|
45
|
38
|
31
|
25
|
21
|
19
|
17
|
15
|
13
|
12
|
|
24V
|
115
|
85
|
68
|
58
|
49
|
42
|
34
|
28
|
23
|
21
|
19
|
17
|
15
|
13
|
| TORQUE(kg-cm) |
12V
|
3.7
|
4.6
|
5.7
|
6.7
|
7.9
|
9.1
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
|
24V
|
3.9
|
4.7
|
5.9
|
6.9
|
8.1
|
9.5
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
|
