ㆍPEN HOUSING TYPE(IC-83428 TYPE)
ㆍGEAR HEAD ASSEMBLY TYPE
  IC-83 Series

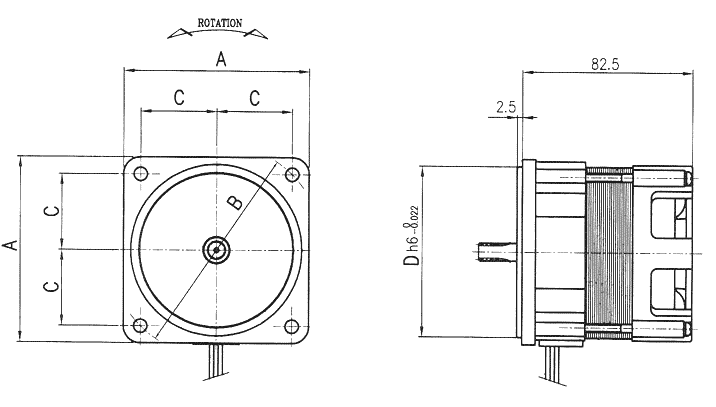

　MODEL SIZE A SIZE B SIZE C SIZE D ASSEMBLY GEAR HEAD

IC-83428DWA

 90 φ104 36.77 φ83 S9□B3□□~S9□B200□□

IC-83428DWA

 90 φ104 36.77 φ83 S9□B3□□~S9□B200□□

IC-83428LGA

 90 φ104 36.77 φ83 S9□B3□□~S9□B200□□

IC-83428SSRA

 80 φ94 32.84 φ73 S8□A3□~S8□A200□





　MODEL Poles Voltage Frequency Output Rated Starting Torque Duty
Speed Torque Current
P V Hz W rpm Kg-cm A Kg-cm

IC-83428DWA

 4 220 60 25 1600 1.8 0.29 1.5 cont.

IC-83428DWA

 4 100 50/60 25 1250/1550 2.1/1.8 0.7/0.57 1.1/1.1 cont.

IC-83428LGA

 4 220 60 25 1600 2.2 0.32 2.4 30MIN.

IC-83428SSRA

 4 220 60 25 1600 1.7 0.33 2.2 30MIN.
