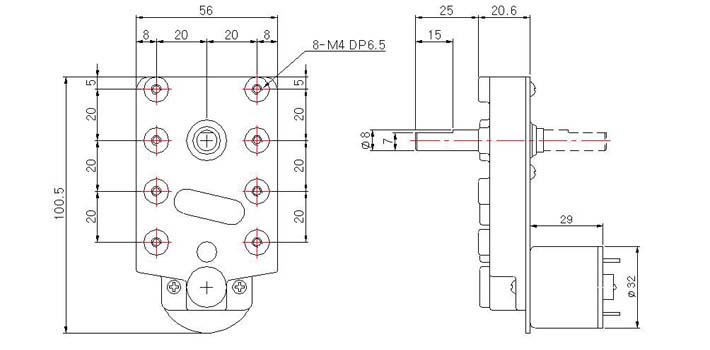

4H-GR-GEARED
MOTOR
|
|
|
▶
Possible to product for needs of ratio beside
bellow chart
아래 표 이외에 감속비 요구 사항
제작 가능
|
|
|
|
MOTOR
SPECIFICATION
|
| DESCRIPTION |
CURRENT |
SPEED |
TORQUE |
OUTPUT |
EFF |
| A |
RPM |
g-cm |
W |
% |
| NO
LOAD |
6V |
0.20 |
6200 |
|
|
|
| 12V |
0.12 |
6200 |
|
|
|
| 24V |
0.06 |
6200 |
|
|
|
| AT
MAX.EFF |
6V |
0.79 |
5140 |
54.5 |
2.87 |
60.67 |
| 12V |
0.47 |
5100 |
59.81 |
3.14 |
55.60 |
| 24V |
0.212 |
5000 |
61.76 |
3.17 |
62.31 |
| AT
STALL |
6V |
3.50 |
|
320 |
|
|
| 12V |
2.20 |
|
340 |
|
|
| 24V |
0.9 |
|
320 |
|
|
|
|
|
|
D.C 6V
|
|
|
|
D.C 12V
|
|
|
|
D.C 24V
|
|
GEARED
MOTOR SPECIFICATION
|
|
RATIO
|
V
|
1/32
|
1/43
|
1/50
|
1/82
|
1/100
|
1/120
|
1/165
|
1/200
|
1/250
|
1/300
|
1/375
|
1/420
|
1/446
|
1/520
|
|
NO
LOAD
|
6
|
193
|
144
|
124
|
75
|
62
|
51
|
37
|
31
|
24
|
20
|
16
|
14
|
13
|
12
|
|
12
|
193
|
144
|
124
|
75
|
62
|
51
|
37
|
31
|
24
|
20
|
16
|
14
|
13
|
12
|
|
24
|
193
|
144
|
124
|
75
|
62
|
51
|
37
|
31
|
24
|
20
|
16
|
14
|
13
|
12
|
|
ON
LOAD(RPM)
|
6
|
160
|
119
|
102
|
62
|
51
|
42
|
31
|
25
|
20
|
17
|
13
|
12
|
11
|
9.9
|
|
12
|
159
|
118
|
102
|
62
|
51
|
42
|
31
|
25
|
20
|
17
|
13
|
12
|
11
|
9.9
|
|
24
|
156
|
116
|
100
|
61
|
50
|
41
|
30
|
25
|
20
|
16
|
13
|
12
|
11
|
9.6
|
|
TORQUE(Kg-cm)
|
6
|
1.2
|
1.7
|
2.0
|
3.2
|
4.0
|
4.3
|
5.9
|
7.0
|
8.9
|
10.7
|
12.0
|
12.0
|
12.0
|
12.0
|
|
12
|
1.4
|
1.8
|
2.1
|
3.5
|
4.3
|
4.7
|
6.4
|
7.8
|
9.8
|
11.7
|
12.0
|
12.0
|
12.0
|
12.0
|
|
24
|
1.4
|
1.9
|
2.2
|
3.6
|
4.5
|
4.8
|
6.6
|
8.1
|
10.0
|
12.0
|
12.0
|
12.0
|
12.0
|
12.0
|
|
