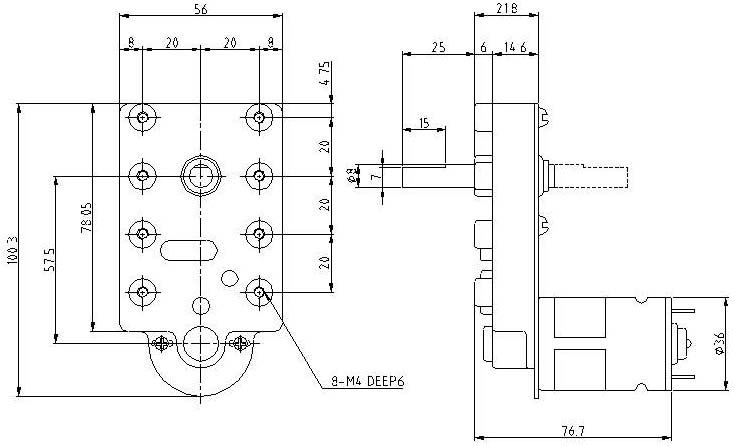

4H-K-GEARED
MOTOR
|
|
|
▶
Possible to product for needs of ratio beside bellow
chart
아래 표 이외에 감속비 요구 사항 제작
가능
|
|
|
|
MOTOR
SPECIFICATION
|
| DESCRIPTION |
CURRENT |
SPEED |
TORQUE |
OUTPUT |
EFF |
| A |
RPM |
g-cm |
W |
% |
| NO
LOAD |
12V |
0.26 |
5200 |
|
|
|
| 24V |
0.14 |
5200 |
|
|
|
| AT
MAX.EFF |
12V |
1.08 |
4390 |
187 |
8.42 |
64.99 |
| 24V |
0.63 |
4480 |
233 |
10.72 |
70.94 |
| AT
STALL |
12V |
5.9 |
|
1200 |
|
|
| 24V |
4.0 |
|
1700 |
|
|
|
|
|
|

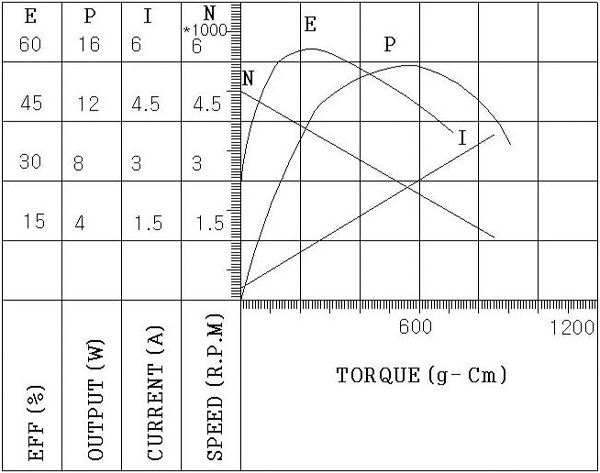

D.C 12V
|
|
|
|

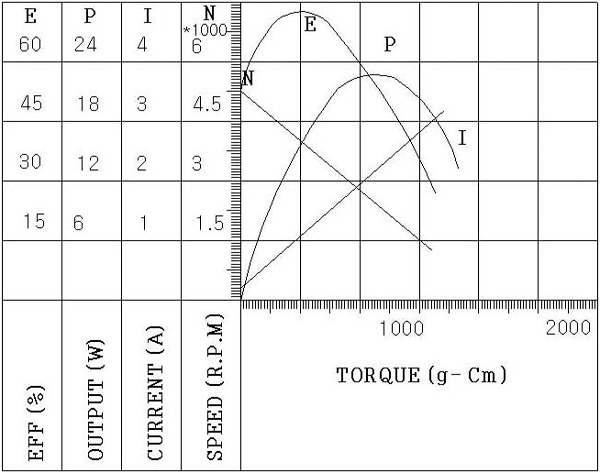

D.C 24V
|
|
GEARED
MOTOR SPECIFICATION
|
| RATIO |
V |
1/32 |
1/43 |
1/50 |
1/82 |
1/100 |
1/120 |
1/165 |
1/200 |
1/250 |
1/300 |
1/375 |
1/420
|
1/466
|
1/520
|
| NO
LOAD(RPM) |
12 |
162 |
120 |
104 |
63 |
52 |
43 |
31 |
26 |
20 |
17 |
13 |
12
|
11
|
10
|
| 24 |
162 |
120 |
104 |
63 |
52 |
43 |
31 |
26 |
20 |
17 |
13 |
12
|
11
|
10
|
| ON
LOAD(RPM) |
12 |
137 |
102 |
87 |
53 |
44 |
36 |
26 |
22 |
17 |
14 |
11 |
10
|
9.4
|
8.4
|
| 24 |
140 |
104 |
89 |
54 |
44 |
37 |
27 |
22 |
18 |
15 |
12 |
10
|
9.6
|
8.6
|
| TORQUE(Kg-cm) |
12 |
4.3 |
5.8 |
6.8 |
11.1 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0
|
12.0
|
12.0
|
| 24 |
5.4 |
7.3 |
8.5 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0 |
12.0
|
12.0
|
12.0
|
|
