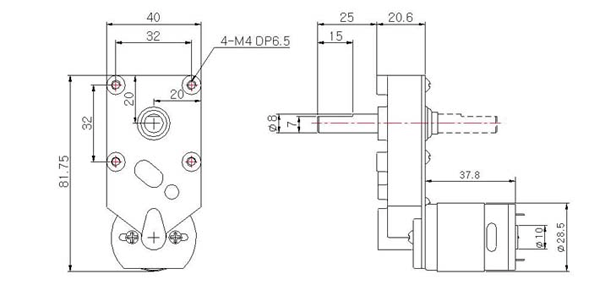

M4H-L-GEARED
MOTOR
|
|
|
▶
Possible to product for needs of ratio beside
bellow chart
아래 표 이외에 감속비 요구 사항
제작 가능
|
|
|
|

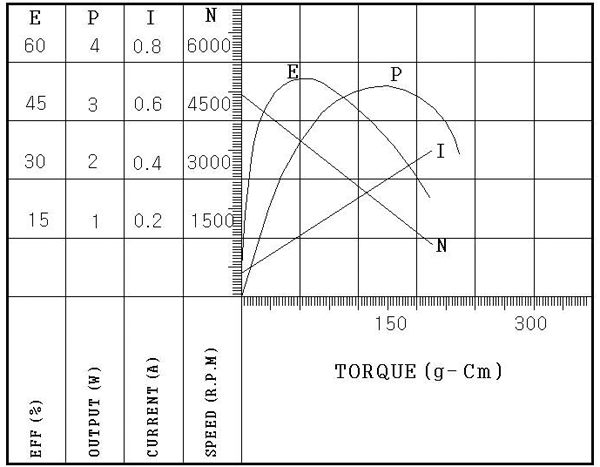

MOTOR
SPECIFICATION
|
| DESCRIPTION |
CURRENT |
SPEED |
TORQUE |
OUTPUT |
EFF |
| A |
RPM |
g-cm |
W |
% |
| NO
LOAD |
24V |
0.08 |
5200 |
|
|
|
| AT
MAX.EFF |
24V |
0.175 |
4130 |
55.7 |
2.36 |
56.8 |
| AT
STALL |
24V |
0.67 |
|
270 |
|
|
|
|
|
|
|
|
D.C
24V
|
|
GEARED
MOTOR SPECIFICATION
|
| RATIO |
V |
1/37 |
1/50 |
1/62 |
1/73 |
1/86 |
1/100 |
1/125 |
1/150 |
1/180 |
1/200 |
1/255 |
1/250 |
1/280 |
1/315 |
| NO
LOAD |
24V |
140 |
104 |
83 |
71 |
60 |
52 |
41 |
34 |
28 |
26 |
23 |
20 |
18 |
16 |
|
AT MAXEFF
|
111
|
82
|
66
|
56
|
48
|
41
|
33
|
27
|
23
|
20
|
18
|
16
|
14
|
13
|
| TORQUE(kg-cm) |
1.5
|
1.8
|
2.2
|
2.6
|
3.1
|
3.6
|
4.5
|
5.4
|
6.5
|
7.3
|
8.2
|
9.1
|
10.0
|
10.0
|
|
