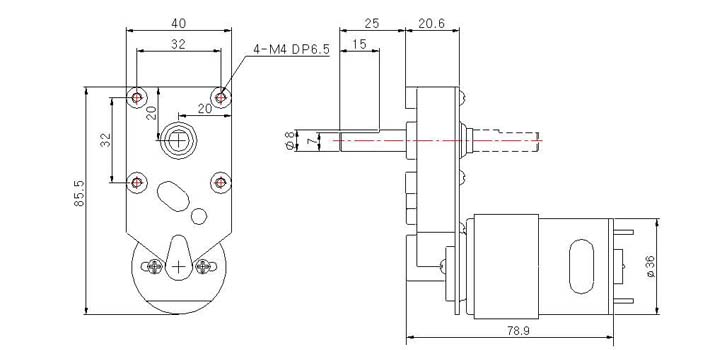

M4H-K-GEARED
MOTOR
|
|
|
▶
Possible to product for needs of ratio beside bellow
chart
아래 표 이외에 감속비 요구 사항 제작
가능
|
|
|
|
MOTOR
SPECIFICATION
|
| DESCRIPTION |
CURRENT |
SPEED |
TORQUE |
OUTPUT |
EFF |
| A |
RPM |
g-cm |
W |
% |
| NO
LOAD |
12V |
0.26 |
5200 |
|
|
|
|
24V
|
0.14
|
5200
|
|
|
|
| AT
MAX.EFF |
12V |
1.08 |
4390 |
187 |
8.42 |
64.99 |
|
24V
|
0.63
|
4480
|
233
|
10.72
|
70.94
|
| AT
STALL |
12V |
5.9 |
|
1200 |
|
|
|
24V
|
4.0
|
|
1700
|
|
|
|
|
|
|
|
|

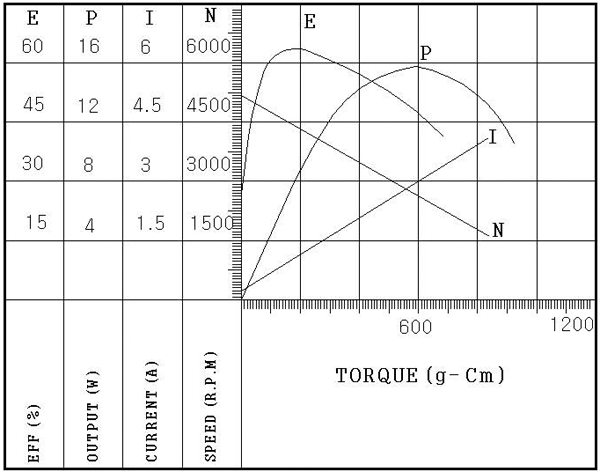

D.C
12V
|
|
|
|

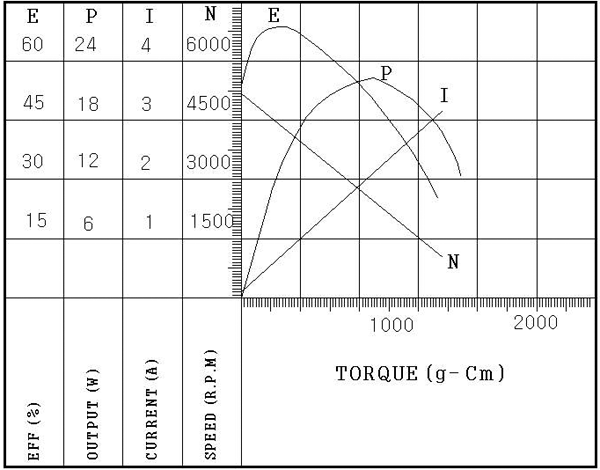

D.C
24V
|
|
GEARED
MOTOR SPECIFICATION
|
| RATIO |
V |
1/37 |
1/50 |
1/62 |
1/73 |
1/86 |
1/100 |
1/125 |
1/150 |
1/180 |
1/200 |
1/255 |
1/250 |
1/280 |
1/315 |
| NO
LOAD |
12V |
140 |
104 |
83 |
71 |
60 |
52 |
41 |
34 |
28 |
26 |
23 |
20 |
18 |
16 |
|
24V
|
140
|
104
|
83
|
71
|
60
|
52
|
41
|
34
|
28
|
26
|
23
|
20
|
18
|
16
|
|
AT MAXEFF
|
12V
|
118
|
87
|
70
|
60
|
51
|
44
|
35
|
29
|
24
|
22
|
19
|
17
|
15
|
14
|
|
24V
|
121
|
89
|
72
|
61
|
52
|
44
|
35
|
30
|
24
|
22
|
19
|
17
|
15
|
14
|
| TORQUE(kg-cm) |
12V
|
5.0
|
6.1
|
7.6
|
8.9
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
|
24V
|
6.2
|
7.6
|
9.4
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
10.0
|
|
