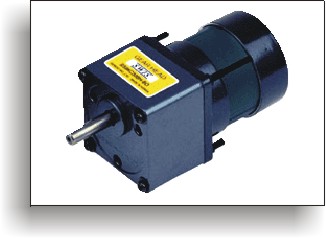

GEARED
BLDC □60
|
|
MOTOR

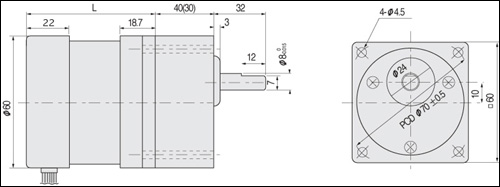

DEMENSION
|
|
|
|
MOTOR
SPECIFICATION
| MODEL |
Rated |
Weight
(kg) |
Length
L
(mm) |
Valtage
(V) |
Output
(W) |
Current
(A) |
Speed
(RPM) |
Torque
(kgf-cm) |
Rating |
| BG60-N012005 |
12 |
5 |
0.7 |
1-1.000 |
0.48-30 |
cont |
0.8 |
54.7 |
| BG60-N012010 |
12 |
10 |
1.4 |
1-1.000 |
0.99-30 |
cont |
0.9 |
64.7 |
| BG60-N012015 |
12 |
15 |
2.1 |
1-1.000 |
1.47-30 |
cont |
1 |
74.7 |
| BG60-N024010 |
24 |
10 |
0.7 |
1-1.000 |
0.99-30 |
cont |
0.8 |
54.7 |
| BG60-N024020 |
24 |
20 |
1.3 |
1-1.000 |
1.95-30 |
cont |
0.9 |
64.7 |
| BG60-N024030 |
24 |
30 |
2 |
1-1.000 |
2.94-30 |
cont |
1 |
74.7 |
| BG60-N220020 |
220 |
20 |
0.4 |
1-1.000 |
1.95-30 |
cont |
0.8 |
54.7 |
| BG60-N220040 |
220 |
40 |
0.7 |
1-1.000 |
3.9-30 |
cont |
0.9 |
64.7 |
| BG60-N220060 |
220 |
60 |
0.9 |
1-1.000 |
5.85-30 |
cont |
1 |
74.7 |
|
|
|
|
| | |
|
