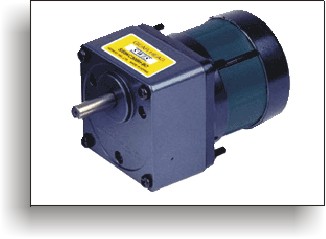

GEARED
BLDC □80
|
|
MOTOR

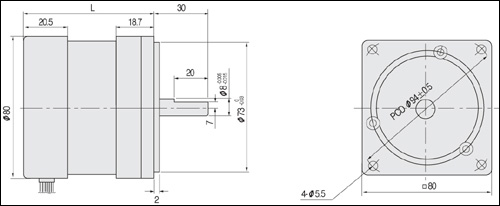

DEMENSION
|
|
|
|
MOTOR
SPECIFICATION
| MODEL |
Rated |
Weight
(kg) |
Length
L
(mm) |
Valtage
(V) |
Output
(W) |
Current
(A) |
Speed
(RPM) |
Torque
(kgf-cm) |
Rating |
| BG80-N012010 |
12 |
10 |
1.4 |
1-1.000 |
0.99-80 |
cont |
1.9 |
53.2 |
| BG80-N012015 |
12 |
15 |
2.1 |
1-1.000 |
1.47-80 |
cont |
2 |
63.2 |
| BG80-N012020 |
12 |
20 |
2.8 |
1-1.000 |
1.95-80 |
cont |
2.1 |
73.2 |
| BG80-N024015 |
24 |
15 |
1 |
1-1.000 |
1.47-80 |
cont |
1.9 |
53.2 |
| BG80-N024025 |
24 |
25 |
1.7 |
1-1.000 |
9.9-80 |
cont |
2 |
63.2 |
| BG80-N024035 |
24 |
35 |
2.4 |
1-1.000 |
13.8-80 |
cont |
2.1 |
73.2 |
| BG80-N220040 |
220 |
40 |
0.4 |
1-1.000 |
3.9-80 |
cont |
1.9 |
53.2 |
| BG80-N220060 |
220 |
60 |
0.5 |
1-1.000 |
5.85-80 |
cont |
2 |
63.2 |
| BG80-N220090 |
220 |
90 |
0.7 |
1-1.000 |
8.7-80 |
cont |
2.1 |
73.2 |
|
|
|
|
| | |
|
