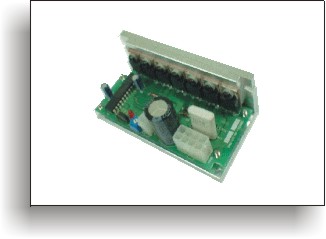

DC12-24V
SBDF
|
|
MOTOR

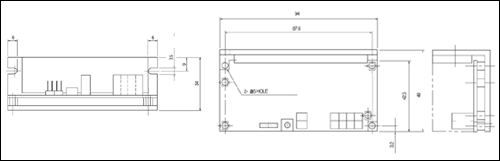

DEMENSION
|
|
|
|
SPECIFICATION
| MODEL |
SBDF-04 |
SBDF-07 |
SBDF-10 |
| Output
Current |
4.2A |
7A |
10A |
| Input
Voltage |
DC12~24V |
| User
Interface |
Speed
Direction
Brake*
Hall Signal*
Speed Control* |
| Control
Method |
3
Phase PWM |
| Led
Display |
Power
(green)
Fault (red) |
| Operating
temperature |
-20oC~80oC |
|
|
|
|
| | |
|
