W90-770-GEARED
MOTOR
|
|
|
▶
Possible to product for needs of ratio beside
bellow chart
아래 표 이외에 감속비 요구 사항
제작 가능
|
|
|
|
MOTOR
SPECIFICATION
|
| DESCRIPTION |
CURRENT |
SPEED |
TORQUE |
OUTPUT |
EFF |
| A |
RPM |
g-cm |
W |
% |
| NO
LOAD |
12V |
0.6 |
4550 |
|
|
|
|
24V
|
0.24
|
4650
|
|
|
|
| AT
MAX.EFF |
12V |
2.80 |
3598 |
572 |
21.13 |
62.92 |
|
24V
|
1.25
|
39.75
|
540
|
22.04
|
73.61
|
| AT
STALL |
12V |
14.11 |
|
3409 |
|
|
|
24V
|
8.56
|
|
4052
|
|
|
|
|
|
|
|
|

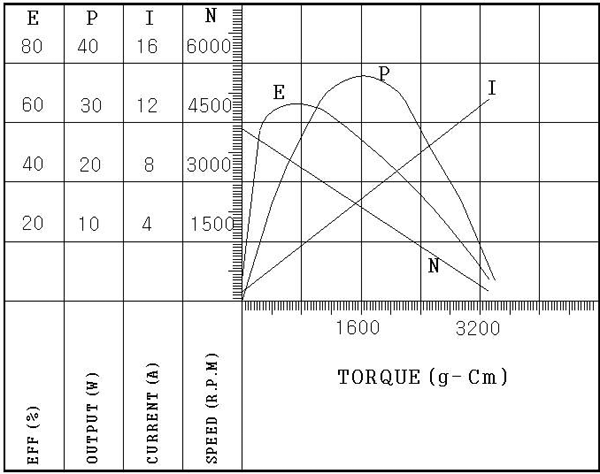

D.C
12V
|
|
|
|

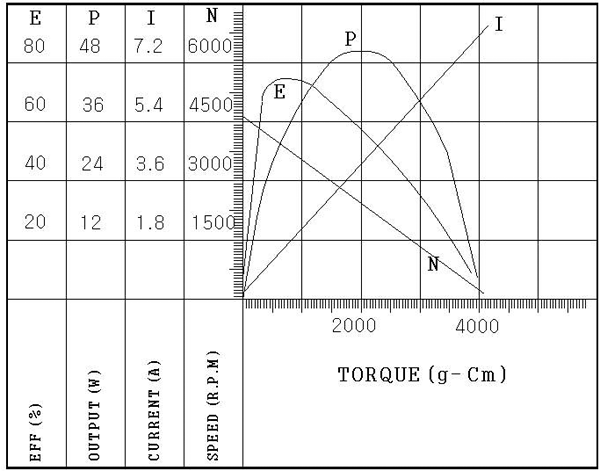

D.C
24V
|
|
GEARED
MOTOR SPECIFICATION
|
| RATIO |
V |
1/10 |
1/18 |
1/30 |
1/50 |
1/70 |
1/105 |
1/120 |
1/150 |
1/180 |
1/210 |
| NO
LOAD |
12V |
455 |
252 |
151 |
91 |
65 |
43 |
38 |
30 |
25 |
21 |
|
24V
|
465
|
258
|
155
|
93
|
66
|
44
|
38
|
30
|
25
|
21
|
|
AT
MAXEFF
|
12V
|
359
|
199
|
119
|
72
|
51
|
34
|
30
|
24
|
20
|
17
|
|
24V
|
397
|
220
|
132
|
79
|
56
|
37
|
33
|
26
|
22
|
19
|
| TORQUE(kg-cm) |
12V
|
2.5
|
4.6
|
7.7
|
12.8
|
18.0
|
27.0
|
30.8
|
38.6
|
46.3
|
50.0
|
|
24V
|
2.4
|
4.3
|
7.3
|
12.1
|
17.0
|
25.5
|
29.1
|
36.4
|
43.7
|
50.0
|
|
