  37-GR-GEARED MOTOR

▶ Possible to product for needs of ratio beside bellow chart
아래 표 이외에 감속비 요구 사항 제작 가능

MOTOR SPECIFICATION
DESCRIPTION CURRENT SPEED TORQUE OUTPUT EFF
A RPM g-cm W %
NO LOAD 6V 0.20 6200
12V 0.12 6200
24V 0.06 6200
AT MAX.EFF 6V 0.79 5140 54.5 2.87 60.67
12V 0.47 5100 59.81 3.14 55.60
24V 0.212 5000 61.76 3.17 62.31
AT STALL 6V 3.50   320
12V 2.20   340
24V 0.9   320

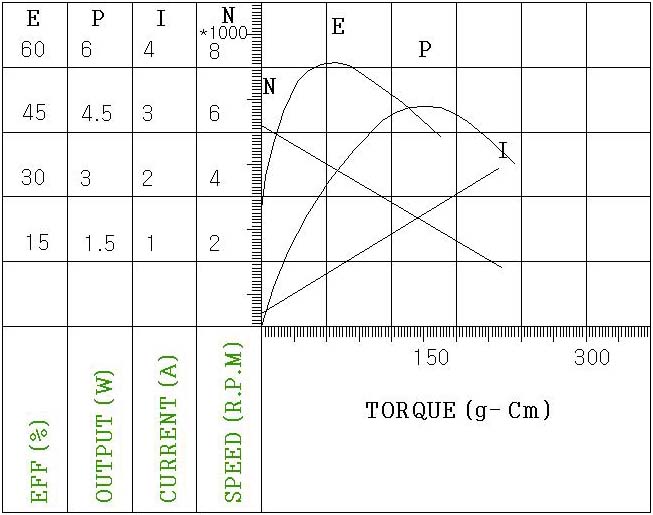

D.C 6V

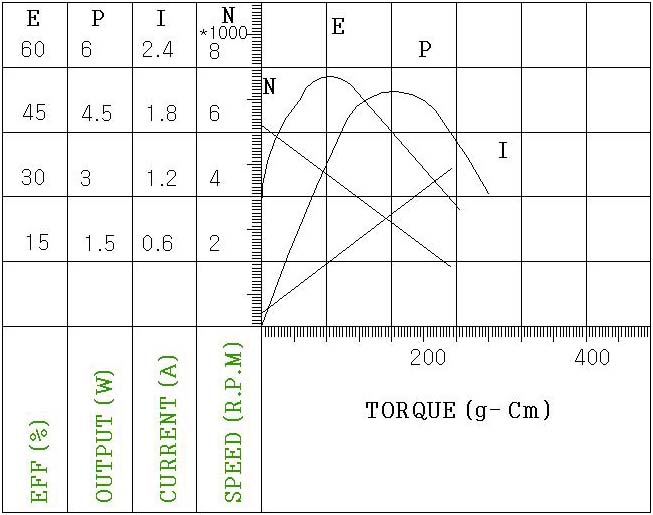

D.C 12V

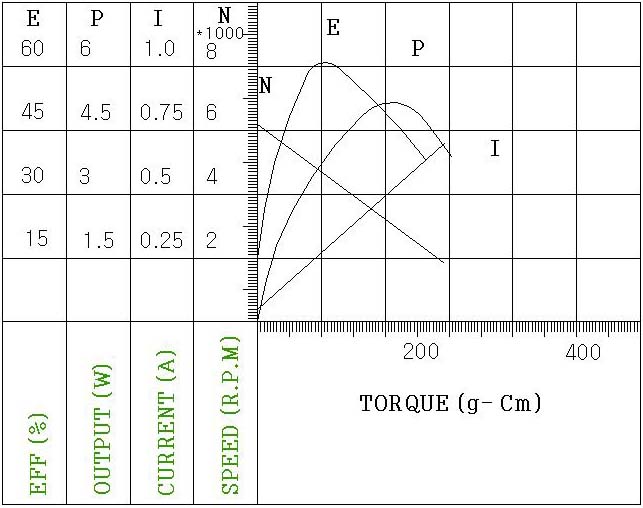

D.C 24V

GEARED MOTOR SPECIFICATION
RATIO V 1/ 6 1/ 10 1/ 18 1/ 30 1/ 40 1/ 60 1/ 80 1/ 100 1/ 120 1/ 150 1/ 180 1/ 200 1/ 250 1/ 300 1/ 400 1/ 500 1/ 600 1/ 750

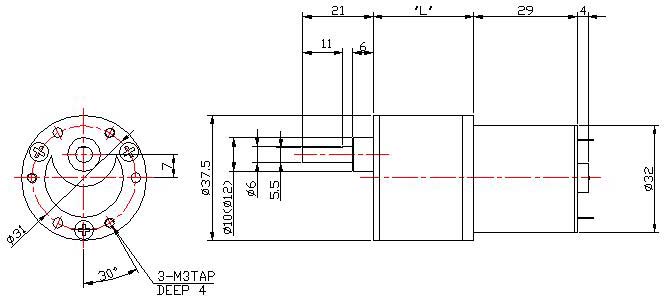

"L"-SIZE 　 24.8 27.3 29.8 32.3
NO LOAD(RPM) 6 1033 620 344 206 155 103 78 62 51 41 34 31 24 21 15 12 10 8
12 1033 620 344 206 155 103 78 62 51 41 34 31 24 21 15 12 10 8
24 1033 620 344 206 155 103 78 62 51 41 34 31 24 21 15 12 10 8
ON LOAD(RPM) 6 856 514 285 171 128 85 64 51 42 34 28 25 20 17 12 10 8.5 6.8
12 850 510 283 170 128 85 66 51 43 34 28 26 21 17 13 10 8.5 6.8
24 833 500 277 166 125 83 63 50 41 33 27 25 20 16 12 10 8 6.5
TORQUE(Kg-cm) 6 0.2 0.4 0.7 1.1 1.4 2.1 2.8 3.5 3.8 4.8 5.7 6 6 6 6 6 6 6
12 0.3 0.4 0.8 1.4 1.7 2.6 3.4 4.4 4.8 5.9 6 6 6 6 6 6 6 6
24 0.3 0.4 0.8 1.3 1.6 2.4 3.1 4.0 4.3 5.4 6 6   6 6 6 6 6
