 42-770-GEARD MOTOR

▶ Possible to product for needs of ratio beside bellow chart
아래 표 이외에 감속비 요구 사항 제작 가능

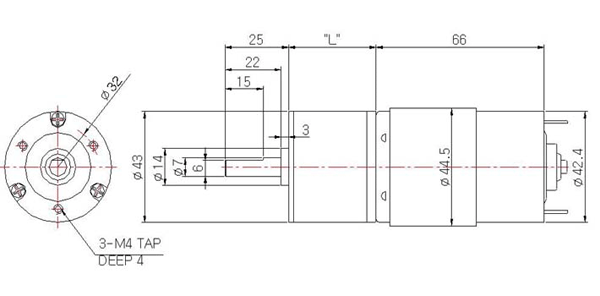

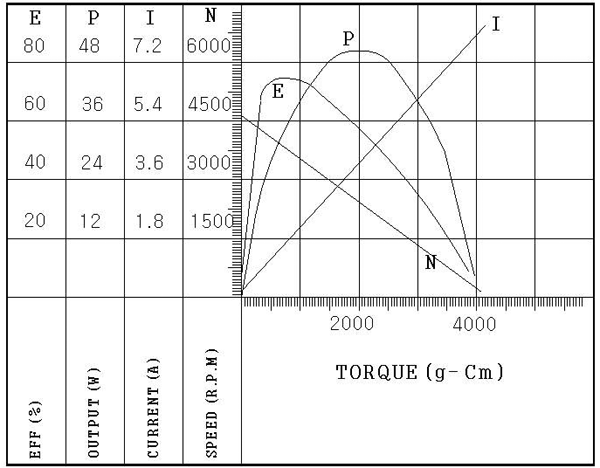

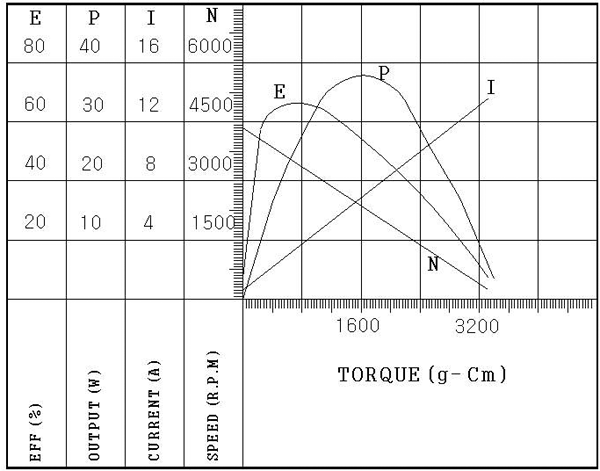

MOTOR SPECIFICATION
DESCRIPTION CURRENT SPEED TORQUE OUTPUT EFF
A RPM g-cm W %
NO LOAD 12V 0.6 4550
24V 0.24 5650
AT MAX.EFF 12V 2.80 3598 572 21.13 62.92
24V 1.25 3975 540 22.04 73.61
AT STALL 12V 14.11   3409
24V 8.56   4052

D.C 12V

D.C 24V

 GEARED MOTOR SPECIFICATION
RATIO V 1/ 10 1/ 12 1/ 14 1/ 20 1/ 25 1/ 30 1/ 36 1/ 42 1/ 50 1/ 65 1/ 77 1/ 90 1/ 105

1/ 115

1/ 140

1/ 165

1/ 190

1/ 220
"L"-SIZE 36.5 40.5

44.5

48.5
NO LOAD
(RPM)		 12V 455 379 325 227 182 151 126 108 91 70 59 50 43

39

32

27

24

20
24V 465 387 332 232 186 155 129 110 93 71 60 51 44

40

33

28

24

21
ON LOAD
(RPM)		 12V 359 300 257 180 144 120 100 85 72 55 46 40 34

31

25

21

19

16
24V 397 331 284 198 159 132 110 94 79 61 51 44 37

34

28

24

21

18
TORQUE
(Kg-cm)		 12V 3.7 4.5 5.2 7.5 8.4 10.1 12.1 14.1 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0
24V 3.5 3.5 4.9 7.0 7.9 9.5 11.4 13.4 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0
