50-H-GEARED MOTOR

▶ Possible to product for needs of ratio beside bellow chart
아래 표 이외에 감속비 요구 사항 제작 가능

MOTOR SPECIFICATION
DESCRIPTION CURRENT SPEED TORQUE OUTPUT EFF
A RPM g-cm W %
NO LOAD 12V 0.28 4800
24V 0.14 5200
AT MAX.EFF 12V 1.19 3880 140 5.58 39.07
24V 0.41 4260 145 6.34 64.72
AT STALL 12V 5.07   735
24V 1.90   800

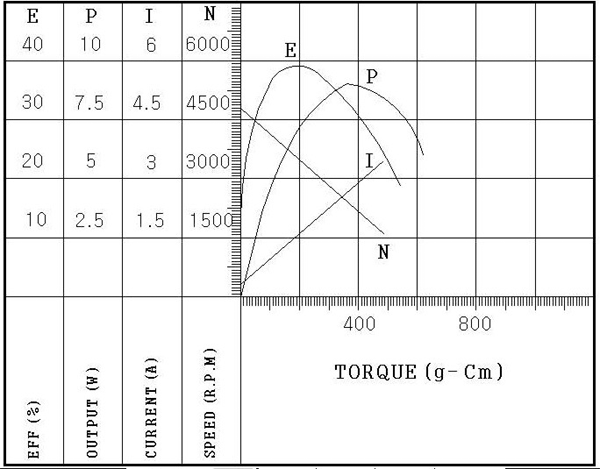

D.C 12V

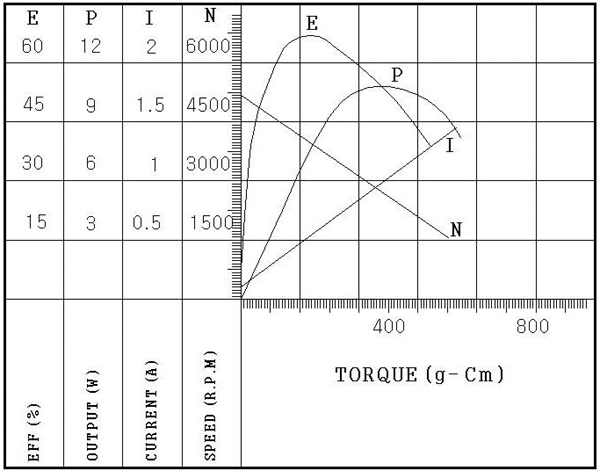

D.C 24V

 GEARED MOTOR SPECIFICATION
RATIO V 1/ 6 1/ 9 1/ 25 1/ 50 1/ 70 1/ 90 1/ 120 1/ 150 1/ 190 1/ 220 1/ 250 1/ 310 1/ 350 1/ 530 1/ 860 1/ 1100

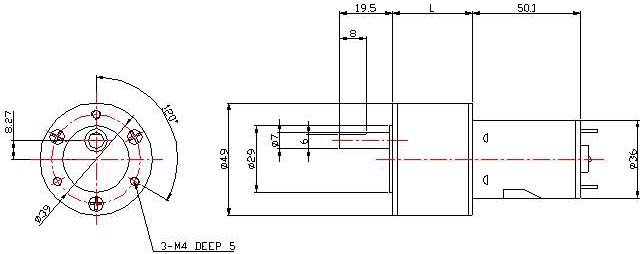

"L"-SIZE 34.2 38.2

42.2

46.2
NO LOAD(RPM) 12V 800 533 192 96 68 53 40 32 25 21 19 15 13 9.0 5.5 4.3
24V 866 577 208 104 74 57 43 34 27 23 20 16 14 9.8 6.0 4.7
ON LOAD(RPM) 12V 646 431 155 77 55 44 32 25 20 17 15 12 11 7.3 4.5 3.5
24V 710 473 170 85 60 47 35 28 22 19 17 13 12 8.0 4.9 3.8
TORQUE(Kg-cm) 12V 0.6 0.9 2.5 4.5 6.4 8.2 9.9 12.4 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0
24V 0.7 0.9 2.6 4.7 6.6 8.5 10.2 12.8 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0
